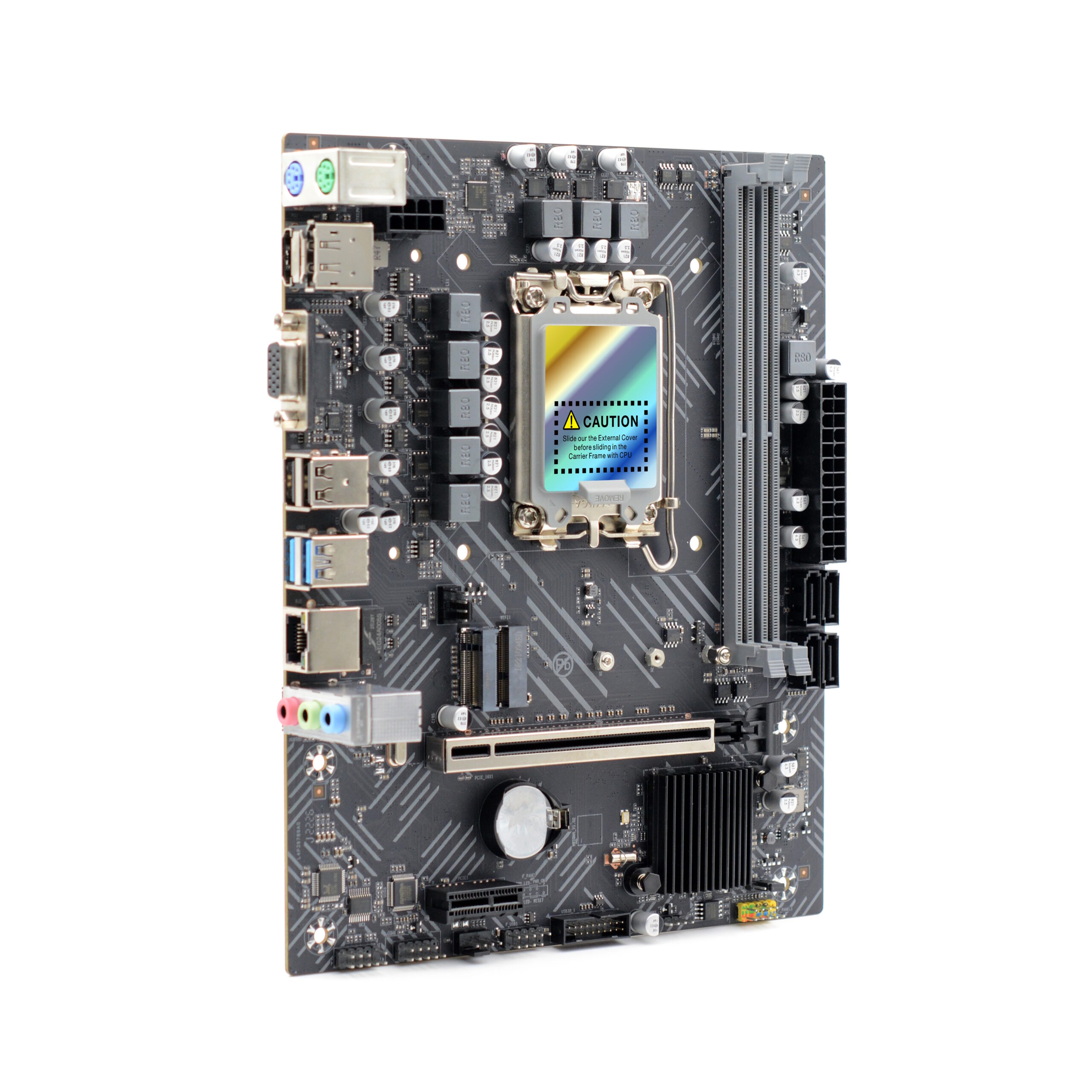

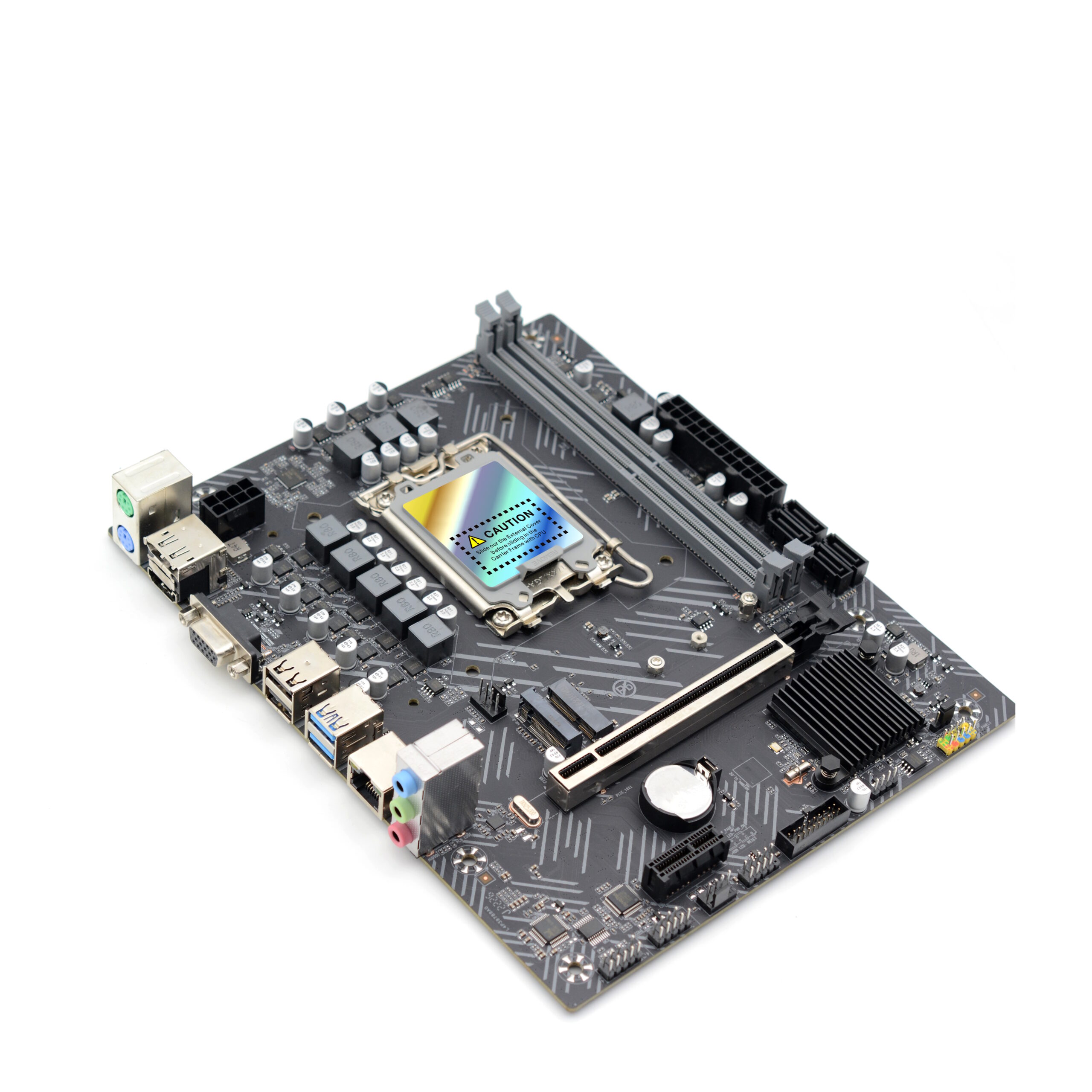

SCHEDA MADRE IRONWARE H610

Scheda madre Micro-ATX (18*22cm)
Chipset H610
Socket Intel 1700
Supporta CPU Intel 12th / 13th / 14th Generation
Intel Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron®

COD: IRONWARE-H610 Categoria: Tag: , ,


Descrizione

Scheda Madre
IRONWARE
H610

Supporto CPU

Chipset H610
Socket Intel 1700
Supporta CPU Intel 12th / 13th / 14th Generation
Intel Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron®

Memoria Ram

2 x Slots DDR4 (Massimo 64GB)

Supporta Ram Dual Channel DDR4 2133 / 2400  /2666 / 2800(O.C) / 3000(O.C) / 3200(O.C) MHz  1.2V

Slot PCI/PCI-E

1 x PCI Express x16 4.0 slot
1 x PCI Express x1 slot
1 x Mini PCI-E Slot (Supports 4G/WIFI Module)

Sata

• 4 x SATA III
• 1 x M.2 (PCIe NVMe Gen3 x4)

Connessioni

• 1 x D-Sub (VGA) Port
• 1 x HDMI
• 1 x DP Port
• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 3 x HD Audio Jack (Line in / Front Speaker / Microphone)

Connettori On Board

• 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
• 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
• 1 x Front Panel Audio pinheader
• 1 x Com

PlatformINTEL Socket 1700
Model NameH610
ChipsetIntel® H610
CPU SupportsINTEL Socket 1700
Supports Intel 12th / 13th / 14th Generation
Intel Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
FSB2133 / 2400  / 2666 / 2800(O.C) / 3000(O.C) / 3200(O.C)
MemoryDual Channel DDR4 2133 / 2400  /2666 / 2800(O.C) / 3000(O.C) / 3200(O.C) MHz  1.2V
Dimm2 x Memory Slots (Max. capacity of system memory 64GB)
Onboard GraphicsIntel® HD Graphics
PCI/PCI-E Slots1 x PCI Express x16 4.0 slot
1 x PCI Express x1 slot
1 x Mini PCI-E Slot (Supports 4G/WIFI Module)
SATA4 x SATA III
1 x M.2 (PCIe NVMe Gen3 x4)
IDEN/A
AudioSupports 6-channel audio-out
LANRealtek RTL8111 Gigabit Ethernet on board
Wake-On-LAN
Back Panel I/Os1 x D-Sub (VGA) Port
1 x HDMI
1 x DP Port
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
2 x USB 3.0 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
3 x HD Audio Jack (Line in / Front Speaker / Microphone)
ON-Board Pinheaders/Connectors1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader
1 x Com
BIOSUEFI BIOS
Form FactorMicro-ATX (18*22cm)
Mounting6 mounting holes
Accessories1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
